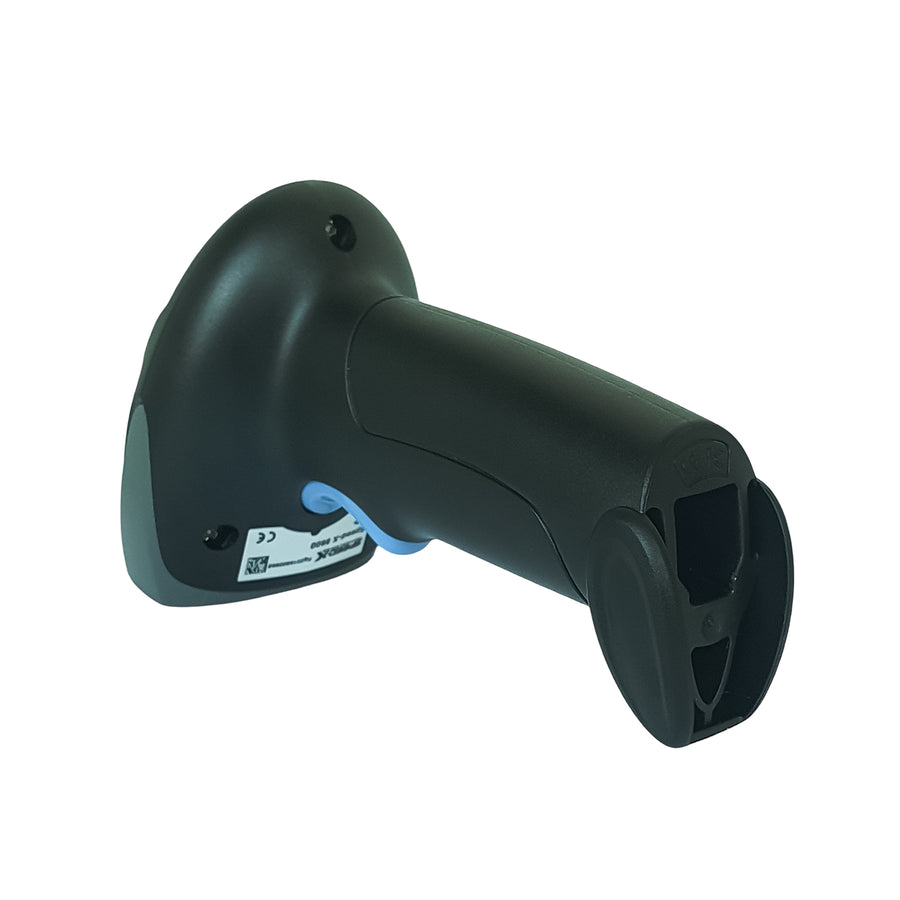

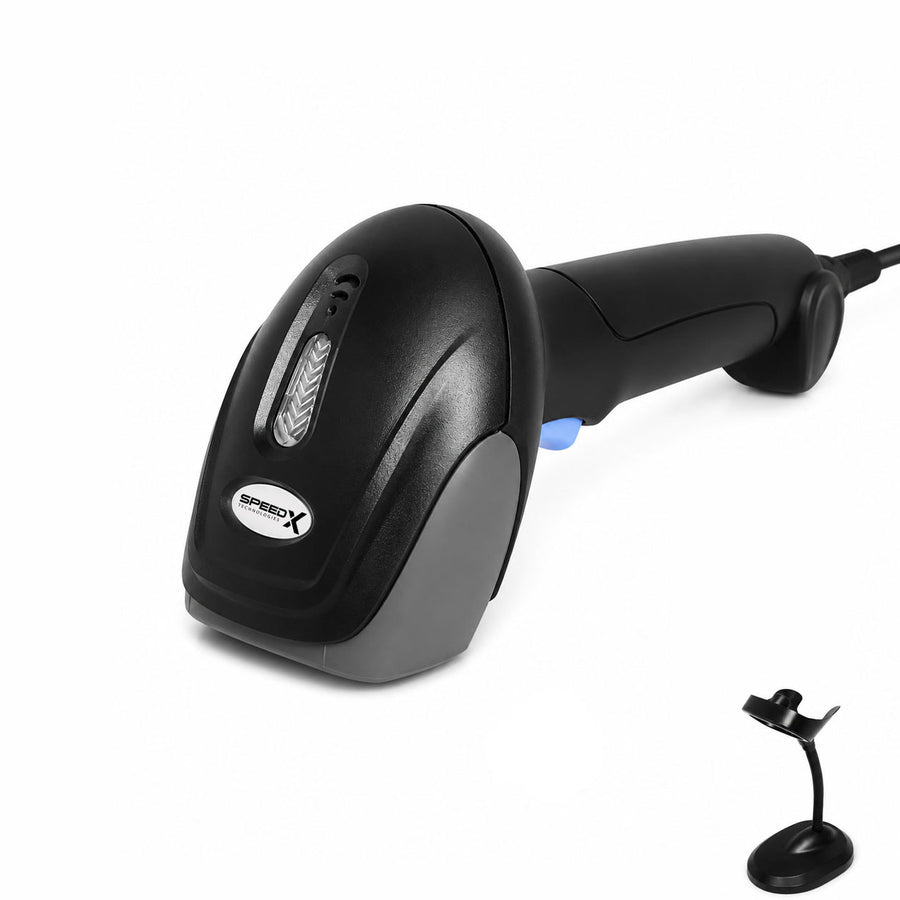

Name: Speed-x 8600 2d Wire Cmos Handheld Barcode Scanner With Stand
Brand: Speed-x
SKU: PKR 3,600
Price: 4530.00 PKR
Availability: InStock

Speed-x 8600 2d Wire Cmos Handheld Barcode Scanner With Stand

Rs.4,530.00

In stock, ready to ship

Ask or order on WhatsApp

Genuine productsSourced from trusted suppliers

Delivery in 2–7 daysNationwide, flat Rs. 200 shipping

7-day returnsAs per our refund policy

Lahore storeHafeez Center, Gulberg

Product description

The Speed-x 8600 is a versatile 2D CMOS handheld barcode scanner designed for seamless integration into retail, inventory, and logistics workflows. Built with a robust CMOS sensor and white LED aiming, it delivers fast, accurate scans of both 1D and 2D barcodes—ideal for businesses across Pakistan looking to streamline checkout and stock management.

Equipped with a stable stand and USB connectivity, this scanner offers plug-and-play convenience, supporting multiple interface modes including USB HID Keyboard and USB COM. Its compact design and high-performance decoding make it a reliable choice for small shops, warehouses, and e-commerce fulfillment centers.

Key Features

High-resolution CMOS sensor (640×480 pixels) for sharp barcode capture
Supports both 1D and 2D symbologies including QR Code, Data Matrix, and Code 128
Wide scanning angles: pitch ±60°, skew ±40°, tilt ±180°
Low power consumption with max current 170 mA and dormant current 48 mA
Built-in white LED aiming light and red bar LED for clear visibility
Durable design with 1.5 m drop resistance and operating temperature from -20°C to 65°C

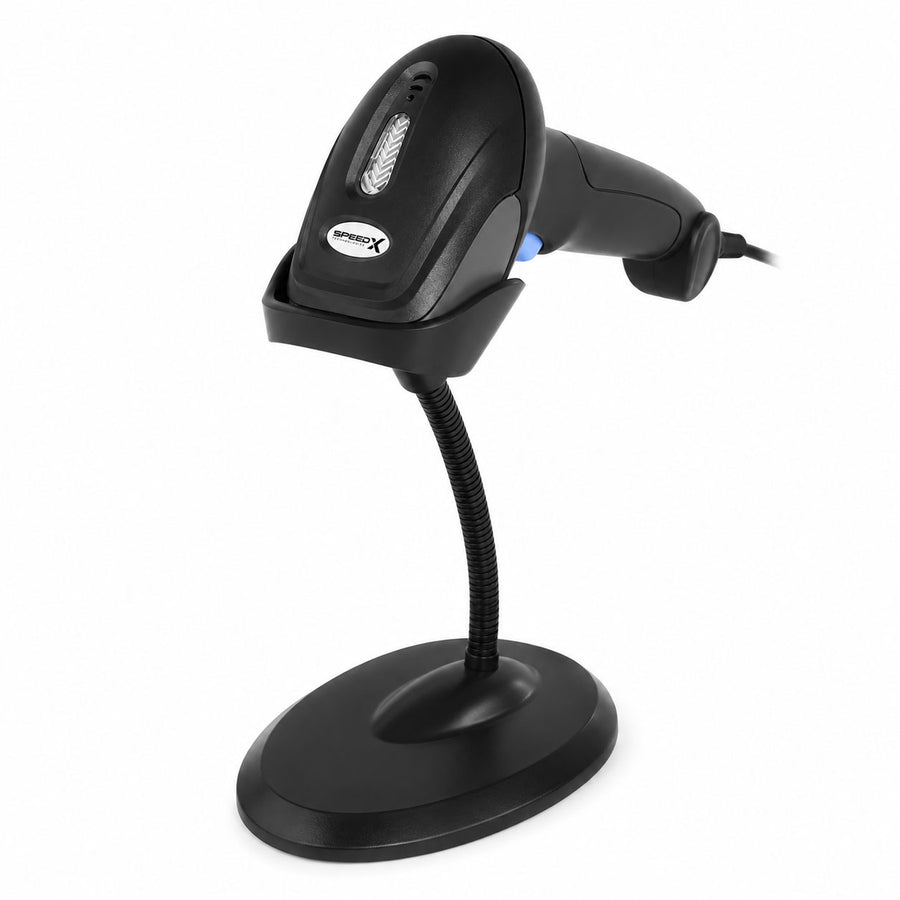

Includes a desktop stand for hands-free scanning
Multiple language support and customizable data output

Technical Specifications

Category	Specification
Interface Supported	USB HID Keyboard / USB COM
Input Voltage	DC 5V ±10%
Current	Max: 170 mA; Dormant: 48 mA
Image Sensor	CMOS Array Sensor
Sensor Resolution	640 × 480 pixels
Light Source	White LED
Aim Light Source	Red Bar LED
Scanning Angle	Pitch: ±60°; Skew: ±40°; Tilt: ±180°
Field of View	66° (H), 50° (V)
Min Resolution	1D: 0.127 mm / 5 mil (PCS ≥ 0.9); 2D: 0.202 mm / 8 mil (PCS ≥ 0.9)
Min PCS Value	≥ 20%
Decode Capability	1D: Code128, ISBT 128, AIM 128, GS1 128, EAN-13, EAN-8, UPCE0, UPCE1, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93, Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey 2D: QR Code, Data Matrix, PDF417, Micro QR
Dimensions	90 mm × 62 mm × 160 mm (L × W × H)
Weight	125 g (excluding cable)
Indicator	Beeper, LED
Operating Temperature	-20°C to 65°C
Storage Temperature	-30°C to 70°C
Humidity (Operation / Storage)	5 – 90%
Ambient Light	Up to 80,000 lx
Shock Drop Test	1.5 m drop onto concrete surface

Video Decoding Formats

QR Code
Data Matrix
PDF417
Micro QR

Ports & Connectivity

USB Type-A (for data and power)

Applications

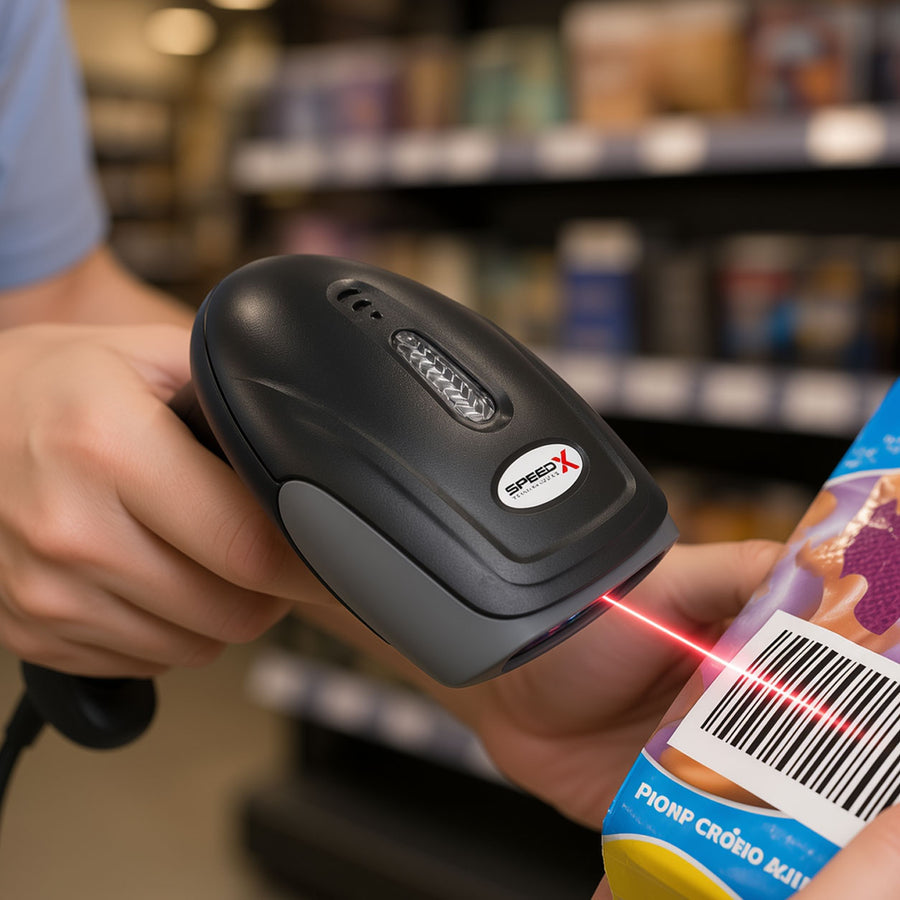

Retail Checkout: Scan UPC/EAN codes at cash counters in supermarkets and grocery stores.
Inventory Management: Track stock levels in warehouses and small retail outlets across Pakistan.
Logistics & Delivery: Capture shipment labels and QR codes for last-mile delivery services.
Library & Document Tracking: Manage book check-ins/outs and file tracking in educational institutions.
Event Ticketing: Validate entry tickets at concerts, sports events, and conferences.
