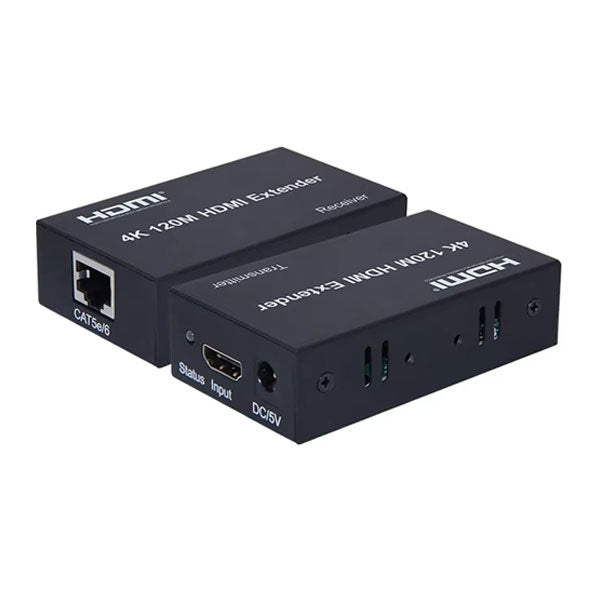

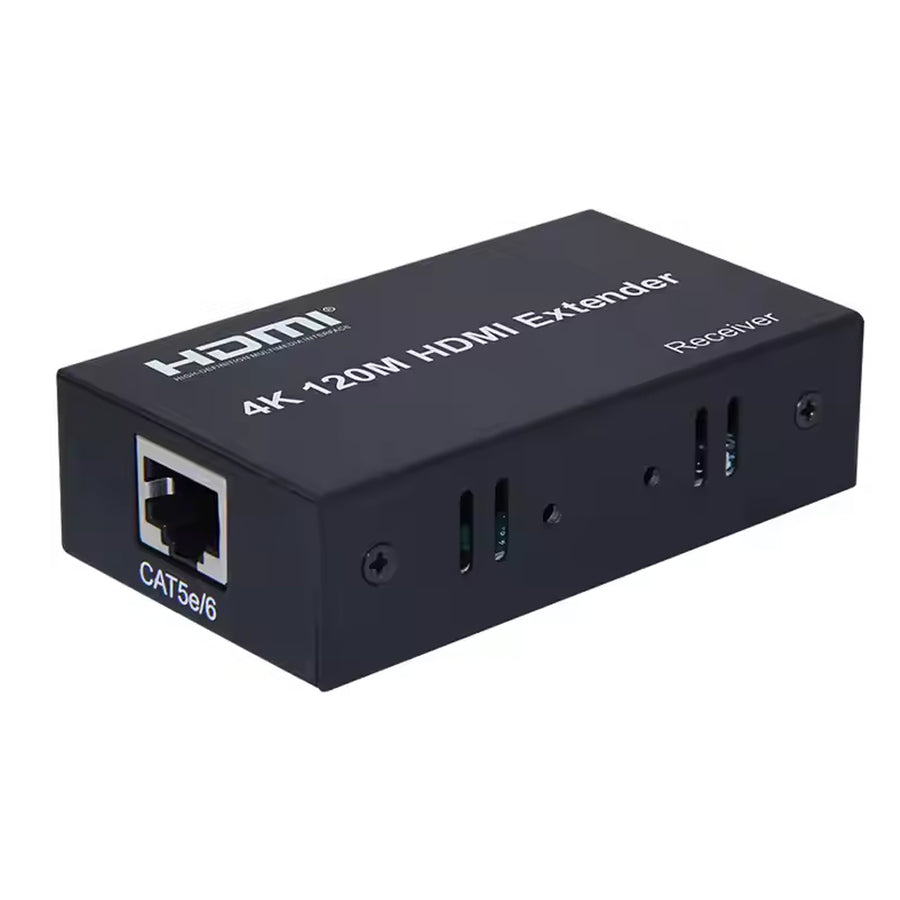

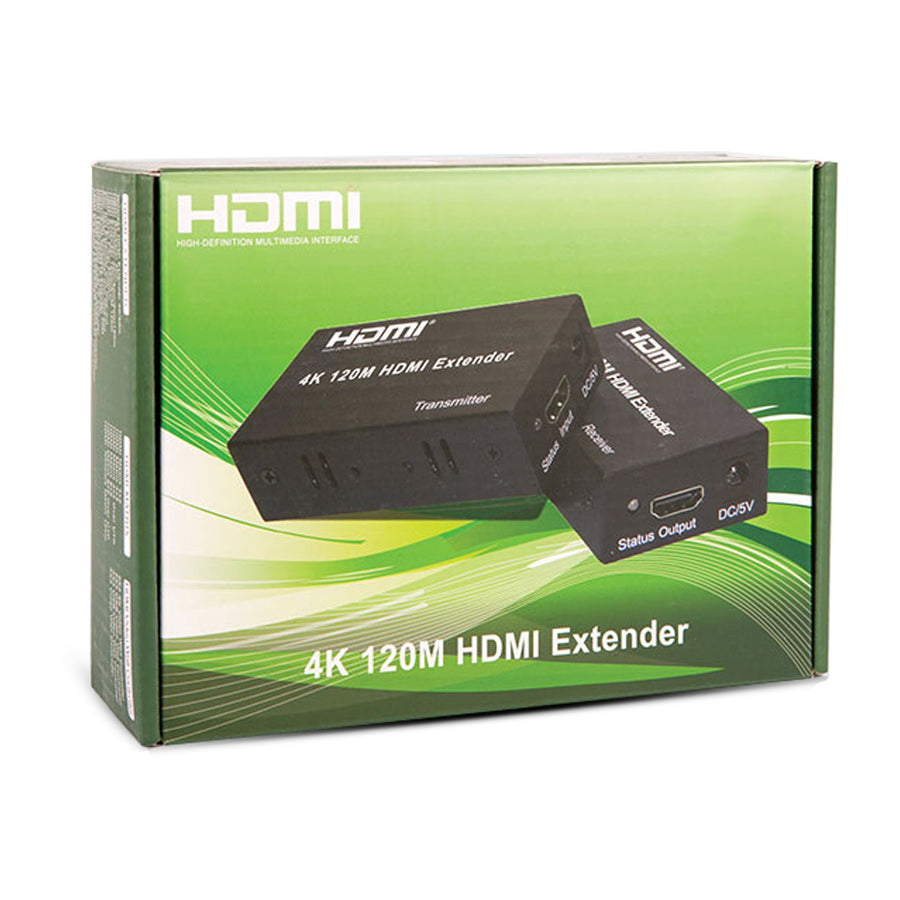

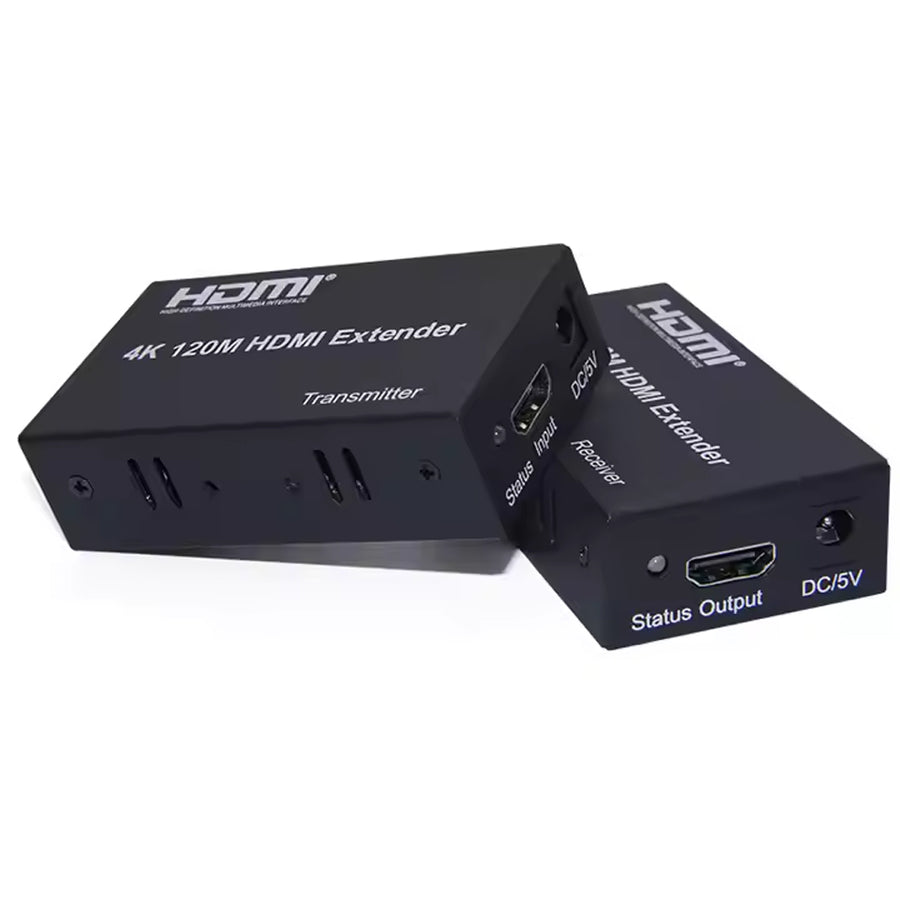

Hdmi Range Extender Single Lan 120m

Extend crystal-clear 1080p HDMI signals effortlessly across your home or office with the HDMI Range Extender Single LAN 120m. Designed for seamless integration with CAT5e/6 cabling, this device converts HDMI into TCP/IP, letting you send high-definition video from set-top boxes, DVD players, PCs and other sources to large displays up to 120 metres away without signal loss.

Whether you’re setting up a conference room, classroom, or home theatre, the extender delivers plug-and-play simplicity with auto-calibration for stable, high-quality playback across every supported resolution.

Key Features

• Converts HDMI to TCP/IP for transmission over standard LAN cables
• Auto-adjusts settings for cable lengths from 10 m up to 160 m
• Uses M-JPEG compression to maintain near-original image quality
• Supports resolutions up to 1080p @ 50/60 Hz and 1080p @ 24 Hz
• HDCP-compatible for protected content playback
• Single LAN port for plug-and-play connectivity
• Bandwidth support: 100 M
• Extends range to 120 m using Cat5e/6; add an Ethernet router to reach beyond 120 m
• Works with switches, routers and other Ethernet devices to extend distance up to 20 km
• Broadcast mode supports multiple receivers via network switch

Technical Specifications

Video Decoding Formats

• 480i @ 50 Hz
• 480p @ 60 Hz
• 576i @ 50 Hz
• 576p @ 50 Hz
• 720p @ 50/60 Hz
• 1080i @ 50/60 Hz
• 1080p @ 50/60 Hz
• 1080p @ 24 Hz

Ports & Connectivity

• 1 × HDMI Input (Type A)
• 1 × RJ-45 LAN Port

Applications

• Extend HDMI from a set-top box to a distant projector or large LED screen in a classroom or training room
• Connect a DVD player in the lobby to a display in the waiting area without running new HDMI cables
• Broadcast HDMI content from a single PC to multiple monitors across a small office network
• Set up a home theatre where the source device is in a utility closet and the TV is in the living room

Why Choose the Hdmi Range Extender Single Lan 120m?

• Eliminates the need for expensive HDMI cabling over long distances
• Auto-calibration ensures the best display quality for any cable length
• Supports full 1080p resolution with minimal compression artifacts
• Works with existing network infrastructure—no special hardware required
• Cost-effective solution priced at PKR 5,500
