Speed-x 9600 2d Desktop Barcode Scanner
Speed-x 9600 2d Desktop Barcode Scanner

Speed-x 9600 2d Desktop Barcode Scanner

Rs.9,088.00 Sale

In stock

Rs.9,088.00

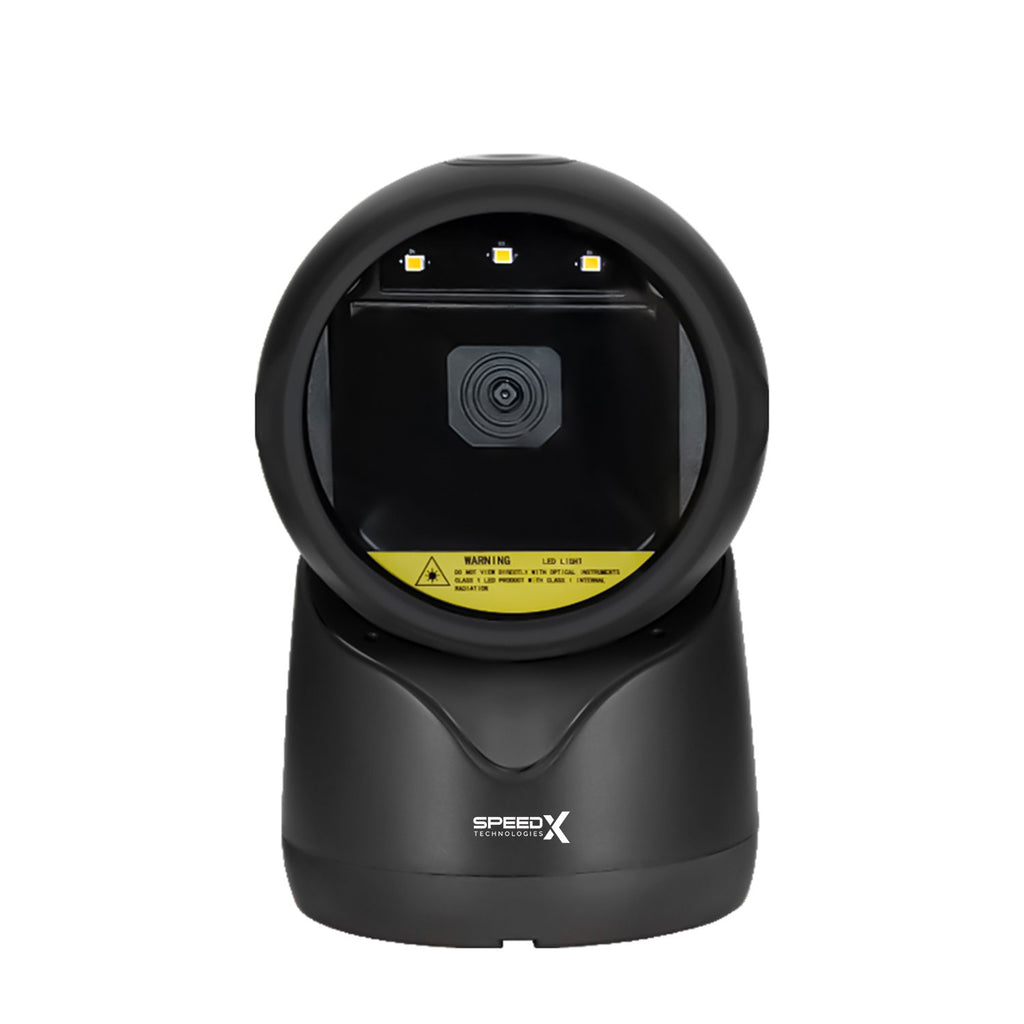

The Speed-x 9600 2D Desktop Barcode Scanner brings fast, reliable scanning to your counter or workspace. Powered by a high-resolution CMOS sensor and white LED illumination, it reads both 1D and 2D codes in a single pass—ideal for retail, logistics, and inventory tasks across Pakistan.

With a 60 fps decoding speed and a wide scanning angle (±65° pitch, ±65° skew, ±360° tilt), the 9600 handles skewed labels and awkward placements effortlessly, reducing downtime and improving throughput.

Key Features

  • Dual-mode USB connectivity: HID keyboard wedge or Virtual COM Port
  • 640 × 480 CMOS sensor for crisp barcode capture
  • 60 frames-per-second decoding for high-volume scanning
  • White LED illumination for consistent readability
  • ±65° pitch & skew, ±360° tilt tolerance
  • Built-in beeper and LED indicator for instant feedback
  • Compact footprint: 94 mm × 100 mm × 152 mm (L×W×H)
  • 1.5 m drop tested for durability
  • Operates from –20 °C to 60 °C and stores from –30 °C to 70 °C

Technical Specifications

Category Specification
Electrical Input Voltage: DC 5 V ±5 %; Max Current: 335 mA
Interface USB HID Keyboard / USB VCP
Image Sensor CMOS Array Sensor, 640 × 480 pixels
Light Source White LED
Decoding Speed 60 FPS
Scanning Angle Pitch ±65°; Skew ±65°; Tilt ±360°
Field of View 36° H × 27° V
Min Resolution 4 mil
Min PCS Value ≥ 20 %
UPC/EAN Min Size 13 mil
Supported Languages Multiple languages for custom data output
Decode Capability 1D: Codabar, Code 39, Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E0, UPC-E1, EAN/JAN-13, EAN/JAN-8, MSI, GS1-DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, China Post (Hong Kong 2 of 5), GS1 Composite Codes, Codeblock A, Codeblock F, Code 32, EAN/JAN-8, Korea Post 2 of 5
2D: PDF417, QR Code, Data Matrix, Aztec code, HanXin code, MaxiCode, Micro PDF417
Dimensions 94 mm × 100 mm × 152 mm (L × W × H)
Weight 260 g
Indicators Beeper, LED
Operating Temperature –20 °C to 60 °C
Storage Temperature –30 °C to 70 °C
Humidity 5 % to 95 % (no condensation)
Shock Resistance 1.5 m drop onto concrete surface

Video Decoding Formats

  • PDF417
  • QR Code
  • Data Matrix
  • Aztec code
  • HanXin code
  • MaxiCode
  • Micro PDF417

Ports & Connectivity

  • USB Type-A for HID keyboard wedge or Virtual COM Port mode

Applications

  • Retail POS scanning at supermarkets and boutiques
  • Inventory counting in warehouses and shops
  • Logistics and courier tracking
  • Pharmacy and healthcare label reading
  • Library and document management

Why Choose the Speed-x 9600 2D Desktop Barcode Scanner?

  • Fast 60 fps decoding cuts queue times in busy stores
  • Wide-angle tolerance handles skewed or tilted labels
  • Dual USB modes simplify integration with any POS or ERP
  • Built to survive Pakistan’s power fluctuations and tough environments
  • Lightweight and compact for easy desk placement
  • Competitive price of PKR 8,300 delivers premium performance
