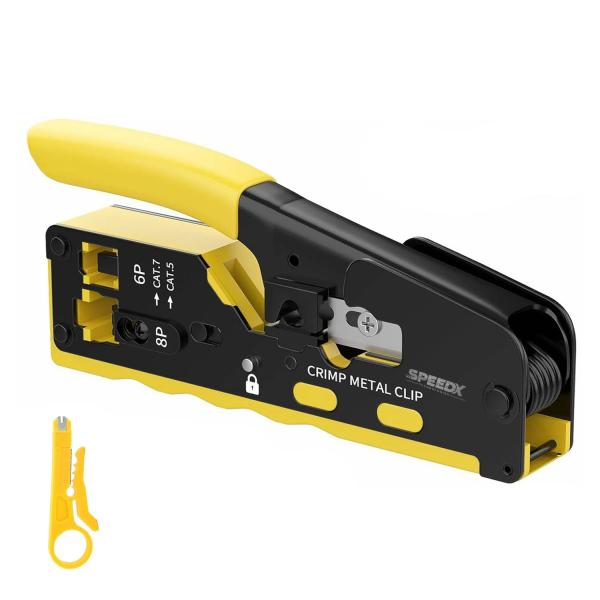

SPEEDX HT-718 CAT7 RJ45 Crimping TOOL WITH CUTTER
SPEEDX HT-718 CAT7 RJ45 Crimping TOOL WITH CUTTER

SPEEDX HT-718 CAT7 RJ45 Crimping TOOL WITH CUTTER

Rs.1,150.00 Sale

In stock

Meit Shop

Rs.1,150.00

Title:

Description: SPEEDX HT-718 CAT7 RJ45 Crimping TOOL WITH CUTTER -



Multi Function：

Used for pass through design connectors , crimp the connector and cut the extra wires , another function of crimping dovetail clip, which is helpful for crimping modular plugs with feed-thru design and dovetail clip at the same time

High Precision：

High-standard precision crimping and grinding port, fixed modular plugs to make sure cables do not fall

CAT5 CAT6 CAT7 Modular Crimper

It doesn’t matter whether you are an IT professional who is dealing with network cables and connectors daily or just a home user who is a newbie to the Ethernet network, you should get the Microware Ethernet crimping tool. 2/3 the size of traditional crimpers, come with screwdriver and cable stripper, crimps standard CAT5 CAT6 and shielded CAT7 network connectors and budget friendly; all together make this network tool from Microware is a top-ranked RJ45 RJ12 RJ11 network crimper today.



The function of tool

1. Lock Button

2. Regulating Screw for Cat5/Cat5e/Cat6/Cat6a/Cat7

3. 8P8C,RJ45 For Ethernet Cable

4. 6P6C,4P4C,RJ11,RJ12 For Telephone Cable

5. Dovetail Clip Crimper





How to make the rj45 cable:

1.Put the cable into the stripper.

2.Rotate the mini wire stripper around the cable.

3.Put the wires into the load bar in turn (by the rj45 order of T568A or T568B ), cut the wires horizontally.

(If you want to crimp the rj11/rj12 cables, the wires order is different with the rj45 cables.)

4.Assemble plug.

5.Press down the handle and roll out the lock button from the back to unlock.

6.Regulating screw fit for cat5 or cat7.

(If you want to crimp the rj11/rj12 cable, ignore this step.)

7.Put the plug into the crimping tool, and then crimp plug.

8.Lightly press the tail to the middle, use the dovetail clamp crimping.
